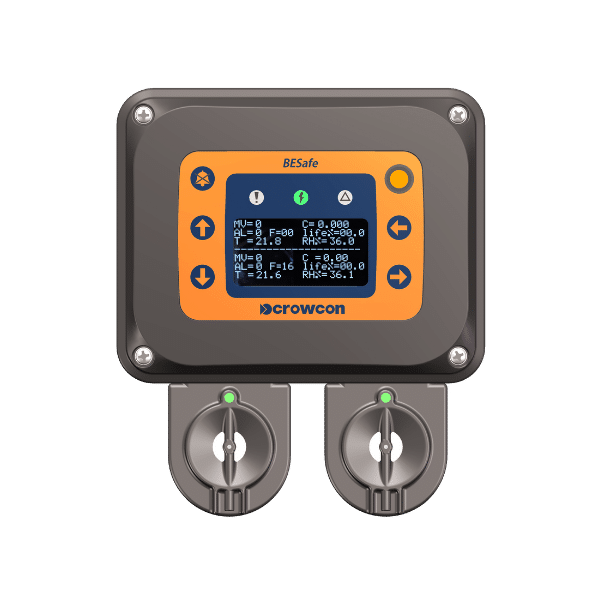

Crowcon BESafe Fixed Gas Detector

SKU: BESAFE

Receive a Quote Within 2 Hours Or Call 02920 759 683

Crowcon BESafe Fixed Gas Detector is designed to provide fast and accurate detection of hydrogen (H₂), carbon monoxide (CO), and methane (CH₄), making it an ideal solution for battery backup and energy storage systems.

Certification includes: EN 61010-1, EN 50270, UL 2075*

*Contact us for more information regarding UL 2075.

Description

Crowcon BESafe Fixed Gas Detector

With a dual-channel configuration, Crowcon BESafe Fixed Gas Detector allows for the simultaneous monitoring of two gases, offering flexible setup options to suit a wide range of applications. This versatility makes it suitable for both new installations and retrofit projects across various sectors.

BESafe’s remote smart sensors simplify installation and significantly reduce maintenance demands. By allowing the sensors to be positioned away from the main unit, it eliminates the need for complex cabling and provides greater flexibility when monitoring hard-to-reach areas. Its compact form factor also enables easy integration into space-limited environments.

In the event of thermal runaway, BESafe offers early detection, giving operators time to act. This proactive alert system helps prevent the escalation of hazardous situations, supports fast and reliable safety responses.

For more information, get in contact via the contact us form or call 02920 759 683.

Description

Crowcon BESafe Fixed Gas Detector

With a dual-channel configuration, Crowcon BESafe Fixed Gas Detector allows for the simultaneous monitoring of two gases, offering flexible setup options to suit a wide range of applications. This versatility makes it suitable for both new installations and retrofit projects across various sectors.

BESafe’s remote smart sensors simplify installation and significantly reduce maintenance demands. By allowing the sensors to be positioned away from the main unit, it eliminates the need for complex cabling and provides greater flexibility when monitoring hard-to-reach areas. Its compact form factor also enables easy integration into space-limited environments.

In the event of thermal runaway, BESafe offers early detection, giving operators time to act. This proactive alert system helps prevent the escalation of hazardous situations, supports fast and reliable safety responses.

For more information, get in contact via the contact us form or call 02920 759 683.

Technical Specification
Size: 175 x 150 x 55 mm
Weight: Base: 550g, Adaptor: 169g, Sensor Tray: 65g each
Enclosure Material: Polycarbonate
Ingress Protection: IP65
Cable Entry: M20
Power: 10 to 30V DC, 24V DC Nominal 150mA (3.6W @ 24V dc), 5W Max
Display: 128×64 OLED
Electrical Output: 2 x 4-20mA RS-485 Modbus RTU
Relays Output: SPDT Relay (1A at 24 VDC) Alarm 1, Alarm 2, Fault
Operating Temp: -20 to +50°C
Operating Humidity: 0 to 99% RH (non-condensing)
Data Logging: 3000 data logs
Warranty: Contact us for information
Approvals: EN 61010-1 EN 50270 UL 2075*
Warranty: Contact us for information
SensorGasRangeLife
CatalyticHydrogen

Methane

0-100% LEL5 years
ElectrochemicalHydrogen

Carbon Monoxide

0-500 PPM

0-1000 PPM

5-10 years
Key Features
Crowcon BESAFE
Detects hydrogen (H₂), carbon monoxide (CO) & methane (CH₄)
Simultaneous monitoring of two gases
Flexible placement in hard-to-reach areas
Early warning in battery & energy storage systems
Simplified installation and servicing
FAQs
Which gases can Crowcon BESafe Fixed Gas Detector detect?
Is Crowcon BESafe Fixed Gas Detector suitable for indoor and outdoor use?

Yes. It features an IP65-rated polycarbonate enclosure, making it durable and suitable for both indoor and outdoor environments.

When is Crowcon BESafe Fixed Gas Detector available?

BESafe is available now to buy through Rockall Safety.
