SKU: 3359746

Drager Saver PP10 Escape Set

SKU: 3359746

Receive a Quote Within 2 Hours Or Call 02920 759 683

When opened, the Dräger Saver PP10 is automatically activated and begins feeding a continuous supply of compressed air to the lung demand valve. The Saver PP10 gives the wearer the precious additional time (10 minutes) to exit the area safely.

Description

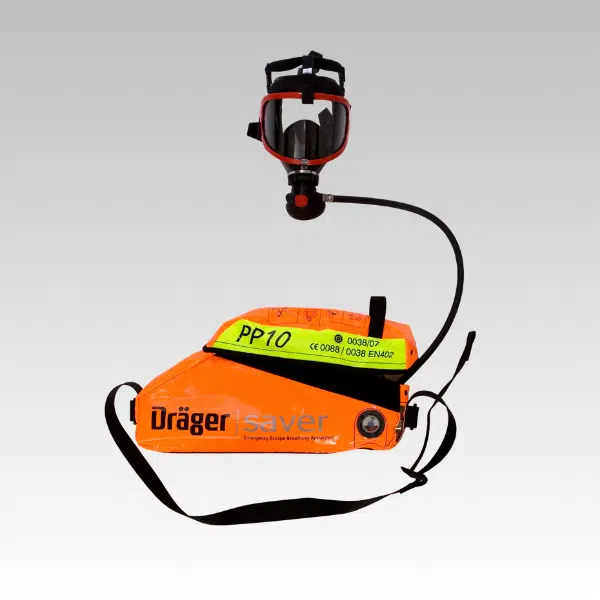

Drager Saver PP10 Escape Set

The Dräger Saver PP10 is a positive pressure emergency escape breathing apparatus, designed to allow fast and safe evacuation from hazardous environments, including areas with high H₂S levels. Quick to put on and fully automatic, it provides up to 15 minutes of lifesaving air, ensuring users can reach safety even in rapidly deteriorating conditions.

The Drager Saver PP10 Escape Set can be wall-mounted in highly visible soft or hard cases with photoluminescent panels and reflective stripes, making it easy to locate in low-light or emergency situations. With optional connection to external air supplies and a cold-temperature variant for use down to -30 °C, the Saver PP10 combines reliability, low maintenance, and robust compliance with PPE and EN402 standards for dependable protection when every second counts.

Key Features

  • Can be charged using standard charging connectors.
  • Comes equipped with the Panorama Nova facemask.
  • The pressure gauge can be inspected without any dismantling or adjustments.
  • Highly visible orange carrying bag.
  • The unit is activated when the carrying system is opened.

For more information, get in contact via the contact us form or call 02920 759 683.

Description

Drager Saver PP10 Escape Set

The Dräger Saver PP10 is a positive pressure emergency escape breathing apparatus, designed to allow fast and safe evacuation from hazardous environments, including areas with high H₂S levels. Quick to put on and fully automatic, it provides up to 15 minutes of lifesaving air, ensuring users can reach safety even in rapidly deteriorating conditions.

The Drager Saver PP10 Escape Set can be wall-mounted in highly visible soft or hard cases with photoluminescent panels and reflective stripes, making it easy to locate in low-light or emergency situations. With optional connection to external air supplies and a cold-temperature variant for use down to -30 °C, the Saver PP10 combines reliability, low maintenance, and robust compliance with PPE and EN402 standards for dependable protection when every second counts.

Key Features

  • Can be charged using standard charging connectors.
  • Comes equipped with the Panorama Nova facemask.
  • The pressure gauge can be inspected without any dismantling or adjustments.
  • Highly visible orange carrying bag.
  • The unit is activated when the carrying system is opened.

For more information, get in contact via the contact us form or call 02920 759 683.

Technical Specification
Size (H x L x D): 510 x 260 x 190 mm
Cylinder charging pressure: 200 bar
LDV output flow L/min: 500 L/min
Operating temperature range: -15 °C to +60 °C (special variant available for -30 °C to 60 °C)
Approvals: EN 402:2003, ISO 23269-1:2008, SOLAS Chapter II-2, Marine Equipment Directive, Pressure Equipment Directive, The Dräger Saver PP hard case and anti-static soft bag versions are suitable for use in explosive atmospheres (zone 0).
Downloads
Videos
FAQs
What is the Dräger Saver PP10 designed for?

The Dräger Saver PP10 is a positive-pressure emergency escape breathing apparatus, designed to allow safe and rapid evacuation from hazardous environments, including areas with high H₂S levels. It is suitable for use in explosive atmospheres (Zone 0) and is quick and easy to operate in emergencies.

What are the dimensions and weight of the Saver PP10?

The PP10 measures 510 x 260 x 190 mm (H x L x D). The weight including the cylinder is 6.6 kg in the hard case version and 4.9 kg in the soft bag version.

What type of air supply does it use?

The Saver PP10 uses a 2 L cylinder charged to 200 bar, delivering a fail-safe 500 L/min output flow via the LDV system. This provides up to 10-15 minutes of lifesaving air, depending on the cylinder size and variant.

What temperature conditions can it operate in?

The standard PP10 operates in temperatures from -15 °C to +60 °C. A special cold-temperature variant is also available, which can be used in conditions as low as -30 °C up to +60 °C.

Which standards and approvals does the Saver PP10 meet?

The PP10 complies with EN 402:2003, ISO 23269-1:2008, SOLAS Chapter II-2, and the Marine Equipment Directive. Both the hard case and anti-static soft bag versions are suitable for use in hazardous or explosive atmospheres and meet the Pressure Equipment Directive requirements.
