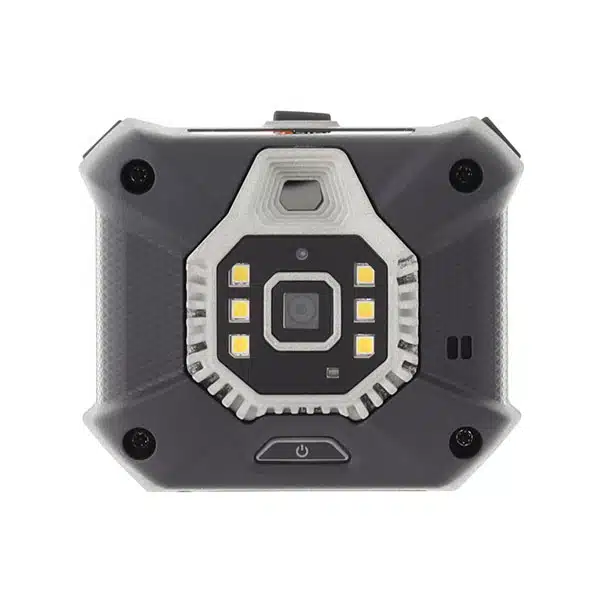

Ecom Cube 800 - Front View

Ecom Cube 800 ATEX Thermal Imaging Camera

£3,449.99

£4,139.99 inc VAT

Ecom ATEX Cube 800 Thermal Imaging Camera

The pinnacle of multi purpose technology, the Ecom Cube 800 is a intrinsically safe solution, providing infrastructure health analysis and comprehensive information via a HD video feed.

The camera ensures high quality visuals through its integrated light ring and laser aiming pointer, whereas its magnetic auto-latch mount guarantees stability when in use.

This allows for hands-free, handheld, and monopod use to capture visuals in hard to reach places. During onsite collaborative projects, this technology will prove invaluable you and your workers; this device can be seamlessly integrated with a variety of Ecom Phones.

Key Features

  • Optical camera: -20 °C … +55 °C.
  • Thermal Imaging: -10 °C … +55 °C.
  • USB cable for file transfer.
  • 6 foot drop to concrete at 20°C.
  • 13 MP camera (3 x digital zoom).
  • 48 GB onboard storage.
  • Weight: 257 g.
  • Rechargeable 2200 mAh Lithium-ion battery.
  • Conformance: IP64.

To find out what other thermal imaging cameras we supply, as well as a wide variety of cable detection equipment, click here.

Video

Specifications

Optical performance* 13 MP camera (3 x digital zoom)
* 10 cm to infinity focus range
* Automatic focus and white balance
* Integrated LED illumination
* Class 1 laser aiming pointer
Thermal imaging camera* Longwave infrared, 8 … 14 μm
* < 50 mK thermal sensitivity
* Auto flat field correction (FFC)
* Typical measurement accuracy:*
Greater of +/- 5 °C or 5 % where scene temperature = -10 °C … +120 °C
Greater of +/- 10 °C or 10 % where scene temperature = +120 °C … +450 °C
Audio* Built-in omni-directional microphone for ambient sound
* Built-in speaker for CUBE status alerts
Video standard* H.264 / AVC
* HD capture and stream up to 1080 pixel resolution
* Frame rates up to 30fps
Communication* Configuration and live collaboration using Onsight Connect software iOS 11, AndroidTM 5.0 (Lollipop) or higher
* Integrated IEEE 802.11 a/b/g/n
* Dual-band WiFi (2.4 GHz and 5 GHz)
* Bluetooth® 4.1 (LE) for pairing to host device
* Direct Wifi connection to the host phone
Media capture and storage* 48 GB onboard storage
* USB cable for file transfer
Security* WLAN network authentication: WPA, WPA2, WPA-PSK, WPA2-PSK, open
* WLAN data encryption: AES, WEP, TKIP, or disabled
* 802.1 x authentication: PEAP
* AES-256 media encryption for file storage
Rugged features* 6-foot drop to concrete at 20 °C
* 75 mm (W) x 64 mm (H) x 50 mm (D)
* IP64
* Weight: 257 g
Operating ambient temperature* Optical camera: -20 °C … +55 °C
* Thermal imaging: -10 °C … +55 °C
Storage temperature* -30 °C … +60 °C (greater than 3 months max. +45 °C)
Humidity (non-condensing)* Short-term storage (up to 3 months) minimum 5 %, maximum 85 %
* Operating minimum 5 %, maximum 95 % RH
Altitude* Storage (12 °C) minimum 0 ft, maximum 15,000 ft
* Operating (27 °C) minimum 0 ft, maximum 10,000 ft
Power* Rechargeable 2200 mAh Li-Ion battery
* 5 V DC, 1.8 A AC adapter
* Charging from any standard USB port
* Magnetic charging connector
* Up to 4 hours of runtime, depending on media and illumination settings
