With real-time direct-to-cloud connectivity and data insights, the award-winning G6 wearable single-gas detector helps your workers get the help they need quickly in the event of an incident.
The Blackline G6 Single Gas Detector revolutionises safety with cloud connectivity, real-time data streaming, and precise STEL monitoring. It surpasses disposable detectors by providing improved sensor capabilities, worker location tracking, and visual reports for quick response to alarms and compliance issues. This innovative device supports Hydrogen Sulphide, Carbon Monoxide, Oxygen, or Sulphur Dioxide detection, enhancing workplace safety through advanced technology and analytics.
Knowing exactly where your workers are the moment an alarm is triggered or an incident occurs is key to quick and informed action, so you can better protect your workforce. The Blackline G6 offers advanced features for enhanced worker safety:
Real-time worker location via GPS and cloud connectivity
Long-lasting performance with a 4-year lifespan and 1-year battery life
Automatic over-the-air updates for latest capabilities
Low ownership costs through reduced false alarms and easy device management
Flexible ownership options with warranty coverage
Specifications

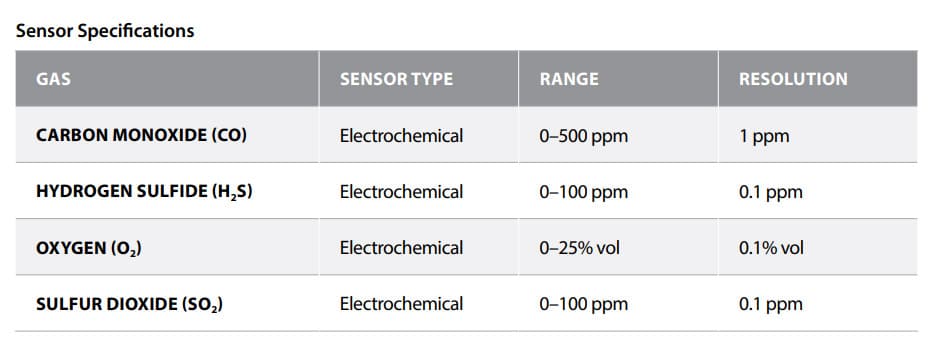

Standard features Single-gas monitoring – CO, H2S, O2, or SO2
Automatic bump tests and calibrations through G6 Dock Standard safety features
Device location, gas readings, bump and calibration data, and alarms are automatically uploaded daily High gas notification Low gas notification Short-term exposure limit (STEL) notification
Bump test and calibration notification
Bump test and calibration failure notification
Size & weight Size: 71mm x 110mm x 37mm (2.8” x 4.3” x 1.5”)
Weight:
146g (5.2 oz)
User interface 240 x 320 pixel graphical, high contrast, 6-bit colour liquid crystal display
The menu system and power-on is driven by three-button keypads
Multi-language support: EN, FR, ES, DE, IT, NL,
PT User notification
Visual: Colour display and multi-colour lights on top and side Sensory: Vibrating Audible: ~95 dB @ 30 cm (11.8”)
Power & battery Rechargeable Li-ion battery: 1200 mAh
Battery life: Up to 1 Year at 20°C (68°F) under normal usage
Charge time: 4 hours Approvals SAR, RoHS, CE,
Canada & USA: Class I Division 1 Group A,B,C,D T4;
Class I Zone 0 AEx da ia IIC T4;
Ex da ia IIC T4 Ga IECEx:
Ex da ia IIC T4 Ga ATEX:
Ex da ia IIC T4 Ga UKCA:
Ex ia IIC T4 Ga
Location technology GPS Radio: 48-channel high sensitivity
Assisted-GPS: Yes GPS Accuracy: ~5 m (16 ft) Outdoors Location update frequency: During high urgency events and once per day
Cellular Communication LTE-M and NB-IoT
Environmental Storage temperature: -30°C to 60°C (-22°F to 140°F)
Operating temperature: -20°C to 55°C (-4°F to 131°F)
Charging temperature: 0°C to 45°C (32°F to 113°F)
Ingress Protection: Designed to meet IP67
Warranty Four-year limited warranty
Blackline Live web application
Cloud-hosted safety monitoring web application is customizable for every customer requirement Includes a compliance dashboard, map, user roles, device configurations, notification setups, and essential reporting.
Description
Blackline G6 Single Gas Detector
The Blackline G6 Single Gas Detector revolutionises safety with cloud connectivity, real-time data streaming, and precise STEL monitoring. It surpasses disposable detectors by providing improved sensor capabilities, worker location tracking, and visual reports for quick response to alarms and compliance issues. This innovative device supports Hydrogen Sulphide, Carbon Monoxide, Oxygen, or Sulphur Dioxide detection, enhancing workplace safety through advanced technology and analytics.
Knowing exactly where your workers are the moment an alarm is triggered or an incident occurs is key to quick and informed action, so you can better protect your workforce. The Blackline G6 offers advanced features for enhanced worker safety:
Real-time worker location via GPS and cloud connectivity
Long-lasting performance with a 4-year lifespan and 1-year battery life
Automatic over-the-air updates for latest capabilities
Low ownership costs through reduced false alarms and easy device management
Flexible ownership options with warranty coverage
Technical Specification
Size: 71mm x 110mm x 37mm
Weight: 146g
User Interface: Liquid Crystal Display
Battery: Up to 1 Year
Temperature: -20°C to 55°C
Audible: 95 dB @ 30 cm (11.8”)
Warranty: CO, H2S, O2: Four-year limited warranty
Warranty: SO2: Two-year limited warranty
Gas monitoring features: Single-gas monitoring - CO, H2S, O2, or SO2. High gas notification. Low gas notification. Live gas on display. Sensor over limit (OL) notification. Sensor under limit (UL) notification. Short-term exposure limit (STEL) notification. Time weighted average (TWA) notification. Bump test and calibration notification. Bump test and calibration failure notification.
Send us your questions about this product and we will endeavour to get back to you as soon as possible!
Product:Blackline G6 Single Gas Detector
