SKU: BWSX-XX-B

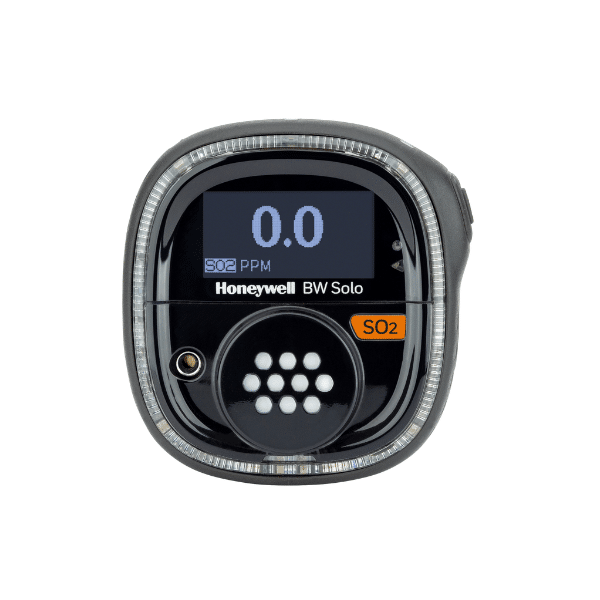

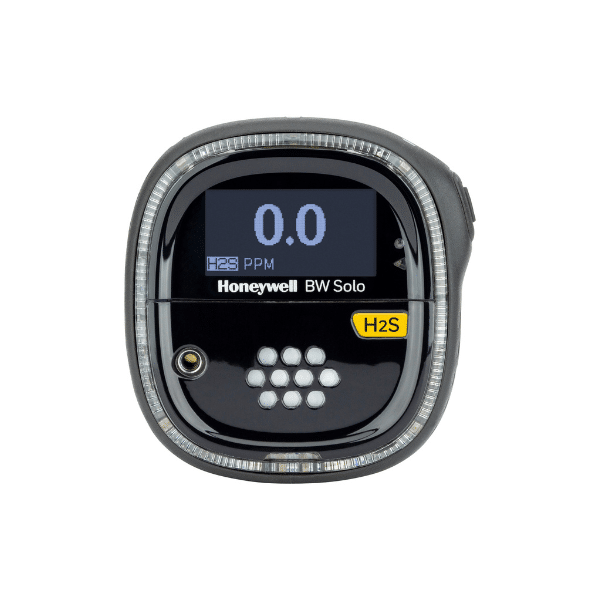

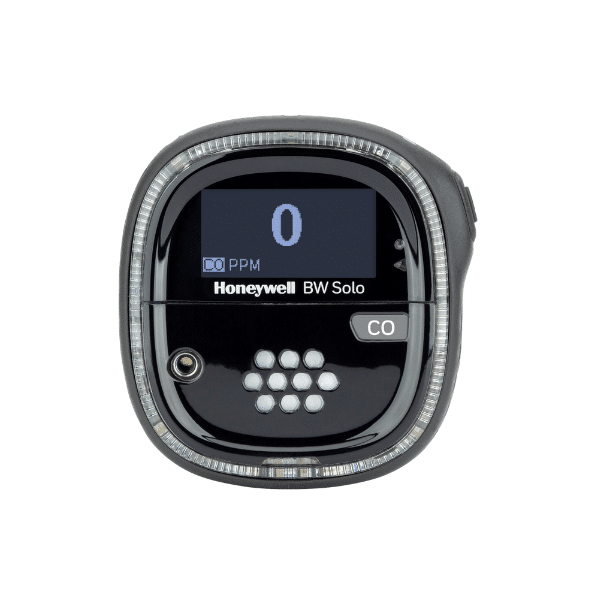

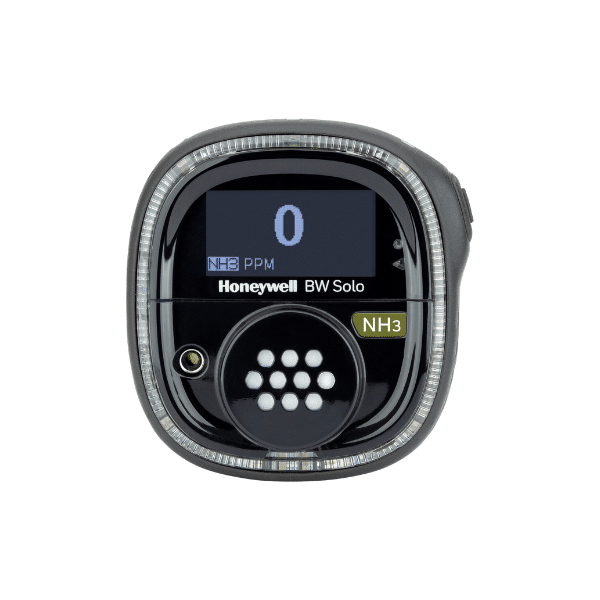

BW Solo Single Gas Detector (Black)

SKU: BWSX-XX-B

Price range: £281.43 through £644.90

The Honeywell BW Solo Single Gas Detector is a portable, single gas detector designed to keep workers safe in hazardous environments.

Description

BW Solo Single Gas Detector (Black)

The BW Solo Single Gas Detector (Black) offers a unique combination of user-friendly operation, reliable performance, and easy maintenance, making it a valuable tool for a variety of industries.

Data can be downloaded onto the PC, which in turn can be managed through the Honeywell software, designed to automate key compliance tasks. It is expertly designed to accommodate 14 distinctly different gas types including ammonia.

One of the key features of the BW Solo Single Gas Detector is its user-friendly design. It has a clear, easy-to-read display that can be customised for different languages. Operating the device is as simple as pressing a single button, minimising the need for extensive training. The BW Solo is built to withstand harsh environments. Its rugged construction ensures it can handle tough conditions, while its lightweight design makes it comfortable to carry around all day without adding unnecessary bulk or weight.

Unlike traditional gas detectors, the BW Solo doesn’t require disassembly to replace sensors, batteries, or filters. This simplifies maintenance and reduces downtime, ultimately lowering the overall cost of ownership. The BW Solo offers a wide range of sensor options, allowing users to select the appropriate detection for specific hazards. Whether you need to monitor common gases like carbon monoxide or hydrogen sulphide, or detect exotic hazards in specialised environments, the BW Solo has you covered.

Specifications

SIZE2.7 x 2.6 x 1.4 in. / 7.0 x 6.7x 3.6 cm (1-Series sensor models)
2.7 x 2.6 x 1.6 in. / 7.0 x 6.7x 4.1 cm (4-Series sensor models)
WEIGHT3.6 to 4.1 oz. / 103 to 116 g, depending on installed sensor
HUMIDITY5% – 95% RH (non-condensing)
INGRESS PROTECTIONIP66/68
ALARMS AND TYPEVisual, vibrating, audible (95 dB); Low, High, TWA, STEL, non-compliance
SELF-TESTSensor integrity, circuitry, battery and audible/visual alarms on activation;
battery (continuous)
TYPICAL BATTERY LIFE12 months (6 months for 1-Series O2)
CONNECTED WORKERBluetooth™ Low Energy (BLE) – Ability to connect
to Honeywell’s Safety Communicator App
USER OPTIONS• Reset TWA, STEL and
Peak readings
• Change High, Low, TWA and
STEL alarm setpoints
• Latching alarms
• Enable IntelliFlash and
non-compliance indicators
• Set calibration and/or
bump test reminders
• Assign worker and
location assignments
• Language select: English,
French, Spanish, German, Italian,
Russian, Japanese, Chinese,
Korean, Portuguese, Dutch
CERTIFICATIONS AND
APPROVALS
Class I, Division 1, Groups A, B, C, D T4
Class I, Zone 0, AEx/Ex ia IIC T4 Ga -40°C≤ Tamb ≤ 60°C
ATEX: Sira 19ATEX2004
X 0518 g II 1G Ex ia IIC T4 Ga -40°C≤ Tamb ≤ 60°C
g I M1 Ex ia I Ma -40°C≤ Tamb ≤ 60°C
IECEx: IECEx SIR 19.0004
Ex ia IIC T4 Ga / Ex ia I Ma -40°C≤ Tamb ≤ 60°C
FCC ID: SU3BWS1
IC: 20969-BWS1
RED: RE-D Directive 2014/53/EU
For additional certifications, please review the manual or consult
Honeywell Analytics.
WARRANTY3 years for 1-Series sensors and 1-Series detectors (excluding battery)
2 years for 4-Series sensors and 4-Series detectors (excluding battery)
1 year for H2, NH3, Cl2, O3, ClO2 sensors

Sensors Ranges

Gas MonitorRangeResolutionOperating Temperature
H2S (1S)0-200 ppm0.1 ppm-40 to +140°F /
-40 to +60°C
CO (1S)0-2000 ppm1 ppm-40 to +140°F /
-40 to +60°C
O2 (1S)0-30% v/v0.1% v/v-40 to +140°F /
-40 to +60°C
CL2 (4S)0-50 ppm0.1 ppm-4 to +104°F /
-20 to +40°C
CLO2 (4S)0-1 ppm0.01 ppm-4 to +104°F /
-20 to +40°C
CO-H (4S)0-2000 ppm0.5 ppm-22 to +122°F /
-30 to +50°C
ETO (4S)0-100 ppm0.1 ppm-22 to +122°F /
-30 to +50°C
H2 (4S)0-1000 ppm2 ppm-4 to +122°F /
-20 to +50°C
H2S (EXT.
RANGE) (4S)
0-500 ppm0.1 ppm-40 to +122°F /
-40 to +50°C
HCN (4S)0-100 ppm0.1 ppm-4 to +122°F /
-20 to +50°C
NH3 (4S)0-100 ppm1 ppm-4 to +104°F /
-20 to +40°C
NH3 (EXT.
RANGE) (4S)
0-400 ppm1 ppm-4 to +104°F /
-20 to +40°C
NO (4S)0-250 ppm0.2 ppm-22 to +122°F /
-30 to +50°C
NO2 (4S)0-100 ppm0.1 ppm-4 to +122°F /
-20 to +50°C
O3 (4S)0-1 ppm0.01 ppm-4 to +104°F /
-20 to +40°C
PH3 (4S)0-5 ppm0.1 ppm-4 to +122°F /
-20 to +50°C
SO2 (4S)0-100 ppm0.1 ppm-4 to +122°F /
-20 to +50°C
Description

BW Solo Single Gas Detector (Black)

The BW Solo Single Gas Detector (Black) offers a unique combination of user-friendly operation, reliable performance, and easy maintenance, making it a valuable tool for a variety of industries.

Data can be downloaded onto the PC, which in turn can be managed through the Honeywell software, designed to automate key compliance tasks. It is expertly designed to accommodate 14 distinctly different gas types including ammonia.

One of the key features of the BW Solo Single Gas Detector is its user-friendly design. It has a clear, easy-to-read display that can be customised for different languages. Operating the device is as simple as pressing a single button, minimising the need for extensive training. The BW Solo is built to withstand harsh environments. Its rugged construction ensures it can handle tough conditions, while its lightweight design makes it comfortable to carry around all day without adding unnecessary bulk or weight.

Unlike traditional gas detectors, the BW Solo doesn't require disassembly to replace sensors, batteries, or filters. This simplifies maintenance and reduces downtime, ultimately lowering the overall cost of ownership. The BW Solo offers a wide range of sensor options, allowing users to select the appropriate detection for specific hazards. Whether you need to monitor common gases like carbon monoxide or hydrogen sulphide, or detect exotic hazards in specialised environments, the BW Solo has you covered.

Technical Specification
Size: 69.7mm x 66.7mm x 36.1mm (1-series sensor models). 69.7mm x 66.7mm x 41mm (4-series sensor models)
Weight: 103-116g (Depending on sensor)
Detection Range: See List Above
Battery: Over 1 year run time
Temperatures (Operating): -40 to 60°C
IP Rating: IP68
Approvals: Class I, Division 1, Groups A,B,C,D T4; Class I, Zone 0, AEx/Ex ia IIC T4 Ga -40°C≤ Tamb ≤ 60°C ATEX: Sira 19ATEX2004 2460 CE II 1G I M1 / Ex ia IIC T4 Ga Ex ia I Ma Tamb -40°C to 60°C IECEx: IECEx SIR 19.0004 Ex ia IIC T4 Ga / Ex ia I Ma Tamb = -40°C to +60°C FCC ID: SU3BWS1 IC: 20969-BWS1 RED: RE-D Directive 2014/53/EU
Videos
FAQs
What gases can the BW Solo Single Gas Detector (Black) detect?

H2S, CO, O2, SO2, NH3, PH3, Cl2, ClO2, NO, NO2, HCN, ETO, O3, H2 and more!

Can I replace the sensor myself?

Yes, the BW Solo features a user-replaceable sensor, making maintenance easier and reducing downtime.

What is the battery life?

It has a typical battery life of 6-12 months.

Is it waterproof?

The BW Solo has an IP68 rating, making it dust-tight and water-resistant, suitable for rugged environments.

What are the alarm types?

The device provides visual, audible (95 dB), and vibrating alarms for high/low/short-term exposure limits (STEL) and time-weighted average (TWA) alarms.
