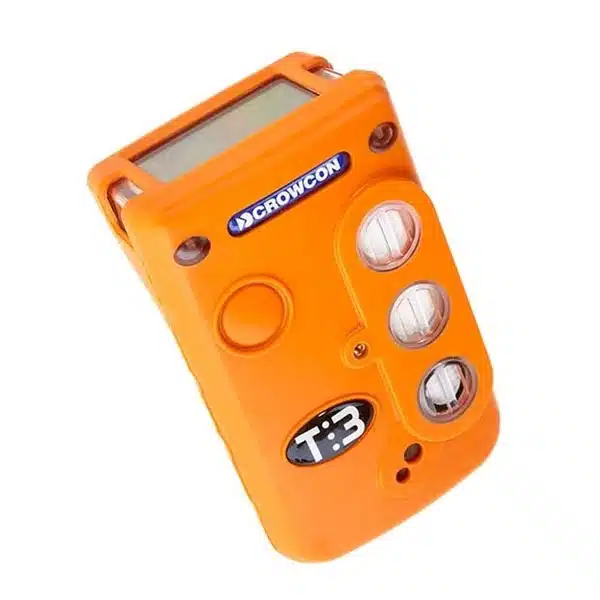

Crowcon T3 Multi-Gas Detector
SKU: T3R-0X-EA-D

Crowcon T3 Multi-Gas Detector

SKU: T3R-0X-EA-D

Receive a Quote Within 2 Hours Or Call 02920 759 683

Datasheet
Manual
Enquire About This Product
Request a Quote
Datasheet
Contact Us
Hire
Service
Install
Commission

The Tetra 3 multi-gas monitor is a compact, robust and easy to use diffusion-based detector. Single button operation, small size and clear top-mounted display make it a favourite in the market amongst those working in demanding industrial environments, such as those in the water, telecoms, food, brewing or hydrocarbons sectors.

CSAIECExATEX

Categories: , , , , , , , , , , , , Tags: , , ,

Description

Crowcon T3 Multi-Gas Detector

The Crowcon T3 is an intuitive multi-sensor gas detector used to guard against a wide range of toxic and flammable gases.

Featuring a top-mounted display for ease of use and quick decision-making. This detector includes a one-button operation and an optional external filter to help reduce maintenance time.

The Crowcon T3 Gas Detector delivers top performance in a robust, lightweight package. The added dust and water resistance this gas detector provides caters well to demanding operations where the working environment can be extreme.

Powered by a long-lasting rechargeable lithium-ion battery the Crowcon T3 can provide up to 14 hours of operation.

For more information, please call us on 02920 759 683.

Specifications

Size114 x 71 x 48mm (tapers to 20mm) (4.5 x 2.8 x 1.9ins)
Weight295g (10.4oz)
Alarms95dB multiple alarm sounds allow selection of distinctive tones for different alarm levels
Internal vibrating alarm
DisplayGraphic LCD with backlight, giving simultaneous display for all gas channels. Graphic symbols for battery (with proportional indication of remaining operation time), healthy operation or fault warning. Start up indication when calibration is due, overdue, or service required.
Normal display: Real time gas concentration levels
Display recall: Peak readings and TWA
Data loggingTimed: 50 hours at 1-minute data rate (>12,000 data logs of 4 channels)
Threshold: Starts after adjustable pre-set level
Event: >5,000 events
Event loggingAlarm, over range, calibration, bump, on/off, TWA, 1000 events
BatteryRechargeable Li-ion battery
Operating timeBased on four-gas instrument fitted with flammable sensor: A 5-hour charge from flat provides at least 12 hours of continuous use.A 12-hour charge provides at least 14 hours of continuous use
SamplingDiffusion or hand aspirator
Operating temperature-20°C to +55°C (-4°F to +131°F)
Storage-25°C to +65°C (-13°F to +149°F)
Humidity20 to 90% RH@ 40°C non-condensing
Ingress protectionIP65 and IP67
ApprovalsATEX II 2 G Ex ia d IIC T4 Gb (-20°C ≤ Ta ≤ +55°C)
BASEEFA05ATEX0187
IECEx Ex ia d IIC T4 Gb (-20°C ≤ Ta ≤ +55°C) BAS05.0059
CSA Class I Division 1 Groups A, B, C and D
Safety standardsEN60079-0, EN60079-11, EN60079-1
CSA22.2, 152
EN50270, EN50271, EN50104, EN45544, EN60079, IEC61508
PC InterfaceRS232 connection from interface module in charger
RS232/USB converter available
CalibrationCan be routinely calibrated using Portables PC software or Crowcon Checkbox IMH
ChargingSingle way drop-in charger with UK, EU or US plug or in-line 110V/220V supply
Single way drop-in charger with options as above including PC interface
5 way multi-charger with universal power supply
Vehicle adapter for in-vehicle charging
Universal charger for vehicle, wall and desk mounting with a multi-region plug (supplied with EU/UK/US/Australian inserts) and status indication

Sensor Ranges

GasRangeTypical Alarm (UK)
*Flammable0- 100% LEL20%
Oxygen (O2)0-25%19/23.5%
Hydrogen sulphide (H2S)0-100ppm5ppm
Carbon monoxide (CO)0-500ppm30ppm
Sulphur dioxide (SO2)0-20ppm1ppm
Ozone (O3)0-1ppm0.1ppm
Ammonia (NH3)0-100ppm25ppm
**Carbon dioxide (CO2)0-5%0.5%
Carbon monoxide (CO)
H₂ compensated		0-500ppm30ppm
Hydrogen Cyanide (HCN)0-30ppm10ppm
Description

Crowcon T3 Multi-Gas Detector

The Crowcon T3 is an intuitive multi-sensor gas detector used to guard against a wide range of toxic and flammable gases.

Featuring a top-mounted display for ease of use and quick decision-making. This detector includes a one-button operation and an optional external filter to help reduce maintenance time.

The Crowcon T3 Gas Detector delivers top performance in a robust, lightweight package. The added dust and water resistance this gas detector provides caters well to demanding operations where the working environment can be extreme.

Powered by a long-lasting rechargeable lithium-ion battery the Crowcon T3 can provide up to 14 hours of operation.

For more information, please call us on 02920 759 683.

Technical Specification
Size: 114 x 71 x 48mm (tapers to 20mm) (4.5 x 2.8 x 1.9ins)
Weight: 295g (10.4oz)
Alarms: 95dB multiple alarm sounds allow selection of distinctive tones for different alarm levels Internal vibrating alarm
Data logging: Timed: 50 hours at 1-minute data rate (>12,000 data logs of 4 channels) Threshold: Starts after adjustable pre-set level Event: >5,000 events
Event logging: Alarm, over range, calibration, bump, on/off, TWA, 1000 events
Battery: Rechargeable Li-ion battery
Operating time: Based on four-gas instrument fitted with flammable sensor: A 5-hour charge from flat provides at least 12 hours of continuous use. A 12-hour charge provides at least 14 hours of continuous use
Sampling: Diffusion or hand aspirator
Operating temperature: -20°C to +55°C (-4°F to +131°F)
Humidity: 15-95% RH@ 40°C non-condensing
Ingress protection: IP65 and IP67
Downloads
Datasheet
Manual
Certificate
Videos
FAQs
What gases can the Crowcon T3 detect?

The Crowcon T3 is a portable multi-gas detector capable of monitoring up to four gases simultaneously. Common configurations include oxygen (O₂), hydrogen sulphide (H₂S), carbon monoxide (CO), and combustible gases (LEL), making it suitable for confined space entry and industrial safety applications.

How long does the Crowcon T3 battery last?

The Crowcon T3 uses a rechargeable lithium-ion battery. A full 12-hour charge provides at least 14 hours of continuous operation, while a 5-hour charge from flat provides at least 12 hours of use when fitted with a flammable gas sensor.

How loud is the alarm on the Crowcon T3?

The Crowcon T3 features a powerful 95dB audible alarm, allowing users to hear alerts in noisy working environments. It also includes an internal vibrating alarm for additional warning in high-noise areas.

Does the Crowcon T3 have data logging?

Yes. The Crowcon T3 includes extensive data logging capabilities, storing more than 12,000 gas readings across four channels. Data can be recorded over approximately 50 hours at one-minute intervals.

Is the Crowcon T3 suitable for confined space entry?

Yes. The Crowcon T3 is widely used for confined space monitoring due to its ability to monitor multiple gases simultaneously, robust alarm system, data logging capabilities, and ATEX certification for hazardous environments.
