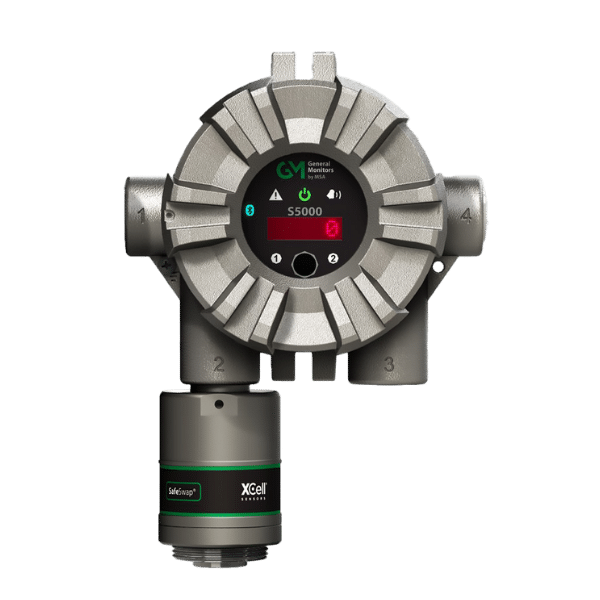

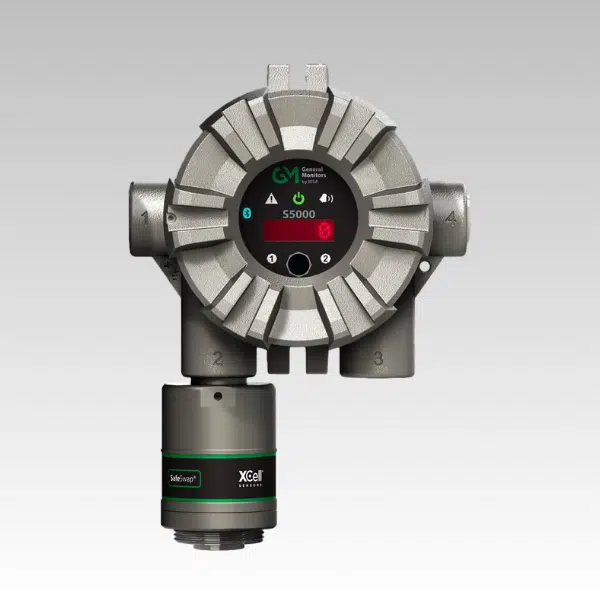

MSA General Monitors S5000 Fixed Gas Detector

SKU: S5000-2-0-2-1-00-D36-000-0

Receive a Quote Within 2 Hours Or Call 02920 759 683

Datasheet
Manual
Enquire About This Product
Request a Quote
Datasheet
Contact Us
Hire
Service
Install
Commission
Consent
Consent(Required)

The MSA S5000 Fixed Gas Detector is the ultimate gas detector for extreme environments needing to detect oxygen, toxic and combustible gases.

INMETROIECExATEXCSA



Categories: , , , , , , , , , , , , , , , , Tags: , , , , ,

Description

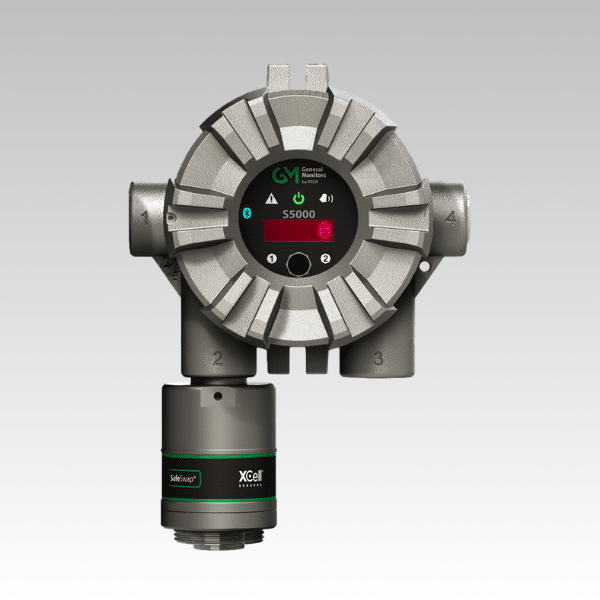

MSA General Monitors S5000 Fixed Gas Detector

The MSA General Monitors S5000 Fixed Gas Detector is for extreme areas needing to detect oxygen, toxic and combustible gases. It operates over a wide temperature range using a variety of gas-sensing technologies. Breakthrough XCell® gas sensors with TruCal® technology extend calibration cycles up to 24 months.

TruCal* actively monitors the sensor integrity and compensates for environmental factors that cause regular electrochemical sensors to drift.

Key Features

  • Dual sensor capability doubles the sensing power with half of the footprint of a single gas transmitter.
  • SafeSwap enables the safe and quick replacement of XCell sensors without turning off the instrument.
  • Instrument status indicators illuminate power, fault and alarm conditions.
  • The S5000 has an intuitive user experience with an industry-first touch-button interface or familiar magnetic interface.
  • Identical footprint and wiring to the S4000 series, making retrofits simple using the existing conduit and wiring.
  • Cloud connectivity available with FieldServer ProtoAir FGFD Gateway.
  • * Available on H2S and CO digital sensors only.

Call our team for further information at 02920 759 683, or visit our contact page.

Description

MSA General Monitors S5000 Fixed Gas Detector

The MSA General Monitors S5000 Fixed Gas Detector is for extreme areas needing to detect oxygen, toxic and combustible gases. It operates over a wide temperature range using a variety of gas-sensing technologies. Breakthrough XCell® gas sensors with TruCal® technology extend calibration cycles up to 24 months.

TruCal* actively monitors the sensor integrity and compensates for environmental factors that cause regular electrochemical sensors to drift.

Key Features

  • Dual sensor capability doubles the sensing power with half of the footprint of a single gas transmitter.
  • SafeSwap enables the safe and quick replacement of XCell sensors without turning off the instrument.
  • Instrument status indicators illuminate power, fault and alarm conditions.
  • The S5000 has an intuitive user experience with an industry-first touch-button interface or familiar magnetic interface.
  • Identical footprint and wiring to the S4000 series, making retrofits simple using the existing conduit and wiring.
  • Cloud connectivity available with FieldServer ProtoAir FGFD Gateway.
  • * Available on H2S and CO digital sensors only.

Call our team for further information at 02920 759 683, or visit our contact page.

Technical Specification

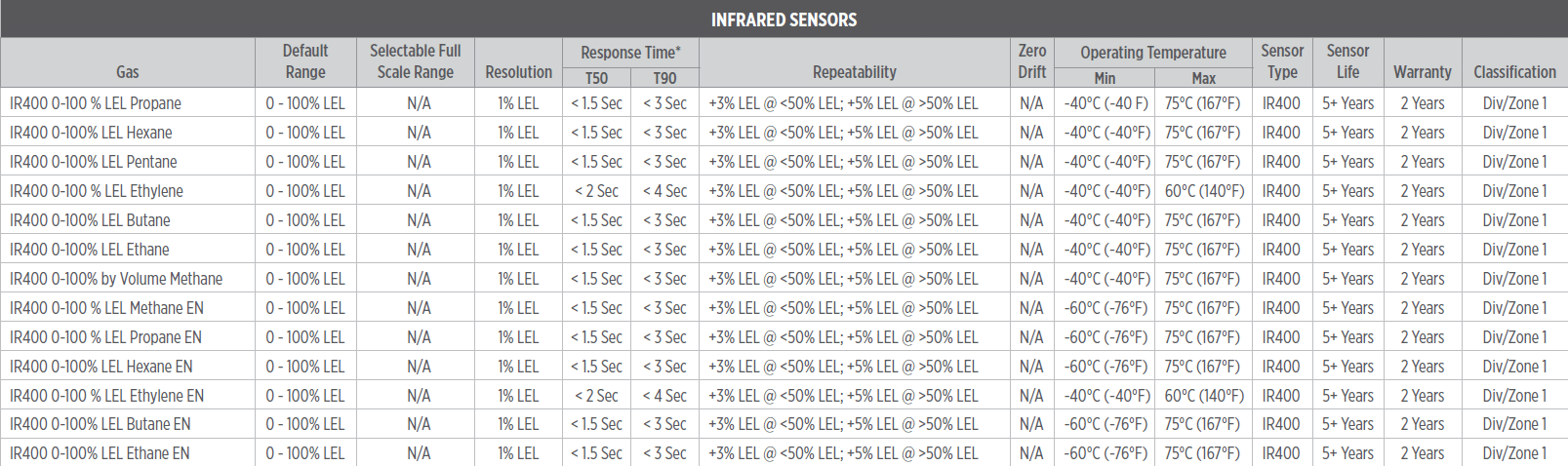

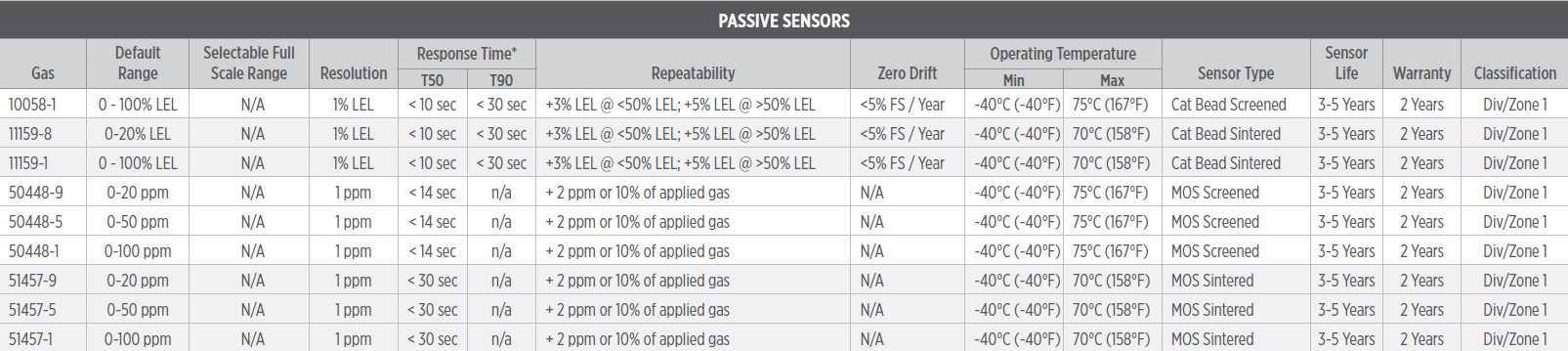

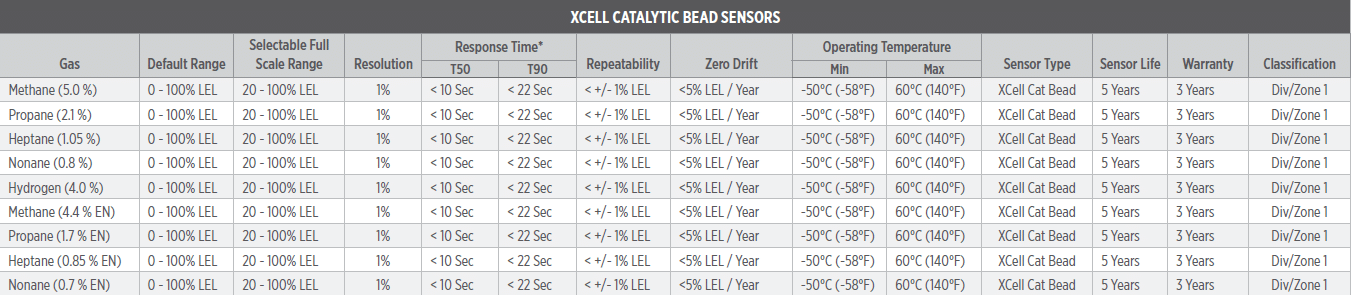

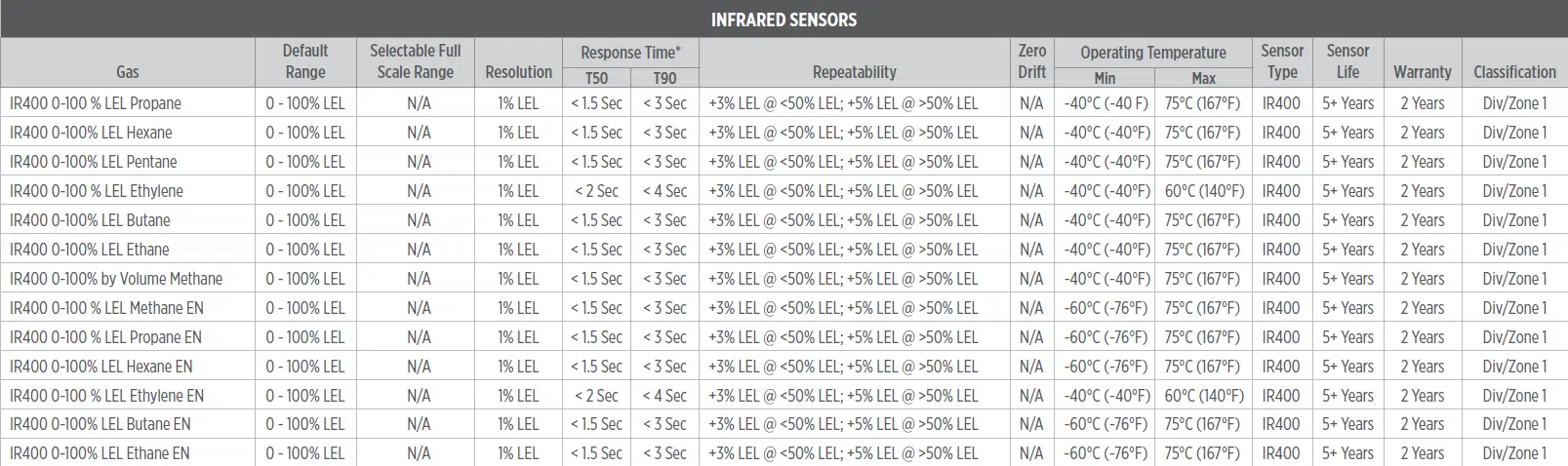

Combustible Gas Sensor Type: Catalytic bead (Passive comb., XCell comb.) Infrared (IR400)

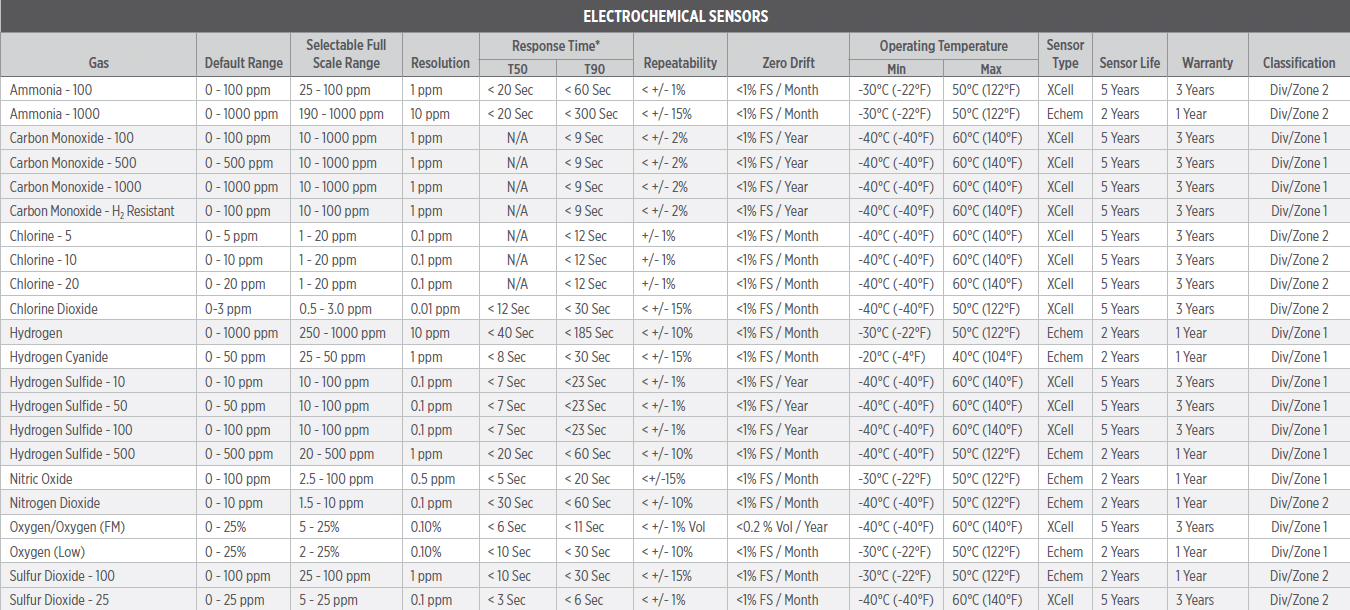

Toxic Gas & Oxygen Sensor Type: XCell Toxic: Ammonia (NH3), Carbon Monoxide (CO), Carbon Monoxide (CO) H₂-resistant, Chlorine (Cl₂), Sulfur Dioxide (SO₂), Chlorine Dioxide (ClO2). Passive MOS, Echem, XCell Toxic: Hydrogen Sulfide (H₂S). XCell O₂: Oxygen (O₂). Electrochem: Ammonia (NH3), Hydrogen (H₂), Hydrogen Cyanide (HCN), Nitric Oxide (NO), Nitrogen Dioxide (NO₂)
Warranty: S5000 transmitter: 2 years. XCell Sensors: 3 years. Passive comb., MOS, IR400: 2 years. Echem Sensors: Varies by gas
Approvals: CSA, FM**, ATEX, IECEx,INMETRO, ABS, DNV-GL Marine, CE Marking. Complies with C22.2 No. 152, FM 6320, ANSI/ISA/CSA/IEC/EN 60079-29-1, ANSI/ISA 12.13.01. Suitable for SIL 2.
Housing: 6.37” x 5.38” x 4.25” (162 x 137 x 108 mm)
Weight: 8 lb. (3.6 kg), 316 SS
Operating Temperature Range: Transmitter -55°C to +75°C. CB (sintered, Zones): -40°C to +70°C. CB (screened, Div): -40°C to +75°C. MOS (sintered, Zones): -40°C to +70°C. MOS (screened, Div): -40°C to +75°C. IR (CSA): -40°C to +75°C. IR (ATEX/IECEx): -60°C to +75°C. XCell: -40°C to +60°C
Relative Humidity (Non-Condensing): XCell sensors (except O2): 5-95%. XCell O2, IR400: 10-95% Echem: 15-90%. Passive combustible: 5-90%. Passive H₂S: 0-95%
Input Power: 24 VDC nominal, 12 to 30 VDC
Signal Output: Dual 4-20 mA current source or sink, HART, Modbus, Bluetooth. Optional: w/o Bluetooth
Relay Ratings: 5A @ 30VDC; 5A @220 VAC (3X) SPDT – fault, warn, alarm
Relay Modes: Common, discrete, horn
Status Indicators: 4-digit scrolling LED, icons depicting fault, warn, alarm, Bluetooth, 1 and 2 to indicate sensor reading displayed
RS-485 Output: Modbus RTU, suitable for linking up to 128 units or up to 247 units with repeaters
BAUD Rate: 2400, 4800, 9600, 19200, 38400, 115200
HART: HART 7, Device Description (DD) and Device Type Manager (DTM) available
Faults Monitored: Low supply voltage, RAM checksum error, flash checksum error, EEPROM error, internal circuit error, relay, invalid sensor configuration, sensor faults, calibration faults, analog output mismatch fault
Cable Requirements: 3-wire shielded cable for single sensor and 4-wire shielded cable for dual sensor configurations. Refer to manual for wiring and mounting distances.



Xcell





Downloads
Datasheet
Manual
Certificate
Brochure
Key Features

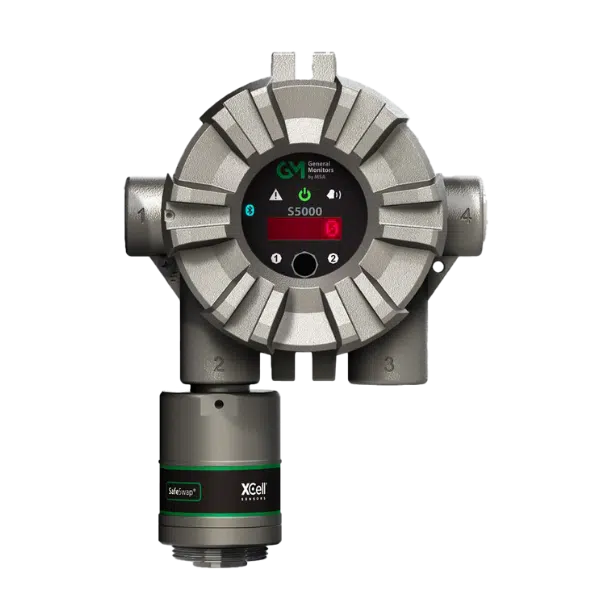

MSA S5000
Detects combustible, toxic gases, and oxygen, and operates in extreme conditions (–55 °C to +75 °C).
H₂S and CO sensors can go up to two years between calibrations, with TruCal monitoring sensor drift every six hours.
Dual-sensor inputs reduce wiring and installation costs per monitoring point.
Users can access instrument status, configuration, and diagnostics without opening the enclosure.
XCell sensors offer fast response, stable performance, a three-year warranty, and an expected five-year lifespan.
Supports configuration and diagnostics directly on the device, making setup and maintenance easier without needing extra tools.
FAQs
What is the MSA S5000 Gas Detector?

The MSA S5000 (also known as the Ultima® X5000) is an advanced fixed gas detection system designed to monitor a wide range of combustible and toxic gases, as well as oxygen levels. It delivers superior accuracy, faster response times, and longer sensor life using MSA’s patented XCell® sensor technology.

What types of gases can the MSA S5000 detect?

The S5000 can detect a wide variety of gases, including:

It supports XCell®, Electrochemical, Passive MOS, and Infrared sensing technologies.

What are the measuring ranges for the S5000?

Typical measuring ranges include:

  • Combustible gases: 0–100% LEL

  • Oxygen: 0–25%

  • Toxic gases:

    • CO: 0–100, 0–500, or 0–1000 ppm

    • H₂S: 0–10, 0–20, 0–50, 0–100, or 0–500 ppm

    • NH₃: 0–100 or 0–1000 ppm

    • NO₂: 0–10 ppm

    • Cl₂: 0–5, 0–10, or 0–20 ppm

    • SO₂: 0–25 or 0–100 ppm
      (and other gases depending on sensor selection)

What sensor types are available with the MSA S5000?

The S5000 supports multiple sensor technologies:

  • Catalytic bead (Passive or XCell) – for combustible gases

  • Infrared (IR400) – for hydrocarbon detection without oxygen dependency

  • Electrochemical (Echem) – for toxic gases and oxygen

  • Metal Oxide Semiconductor (MOS) – for certain reactive gases

  • XCell Toxic and O₂ sensors – for superior accuracy and long life
